A wheelchair ramp to a caravan located on a residential park. The ramp would provide a 1:20 gradient.

A traditional wooden ramp was considered a fire risk against a prefabricated building.

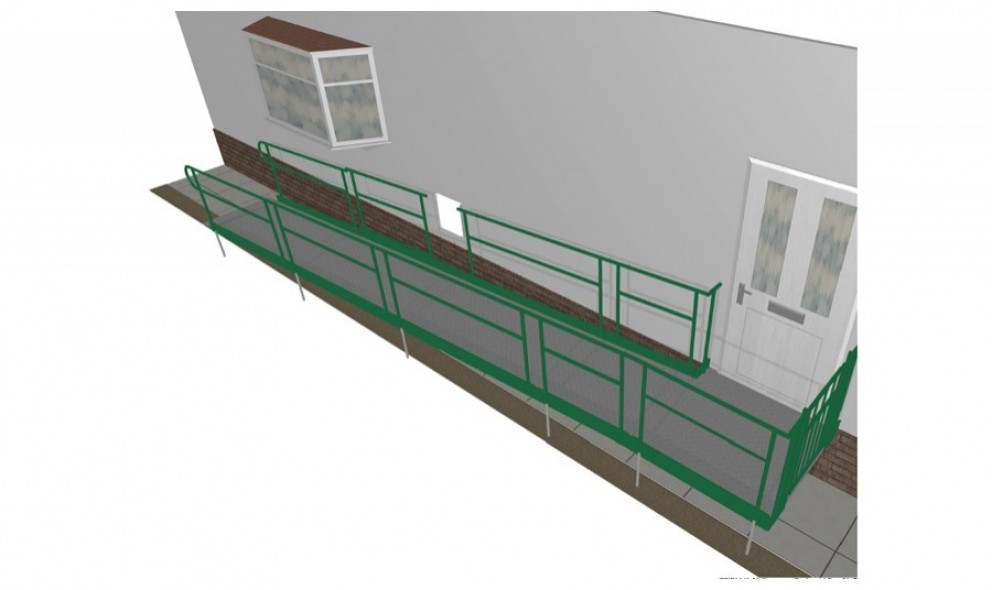

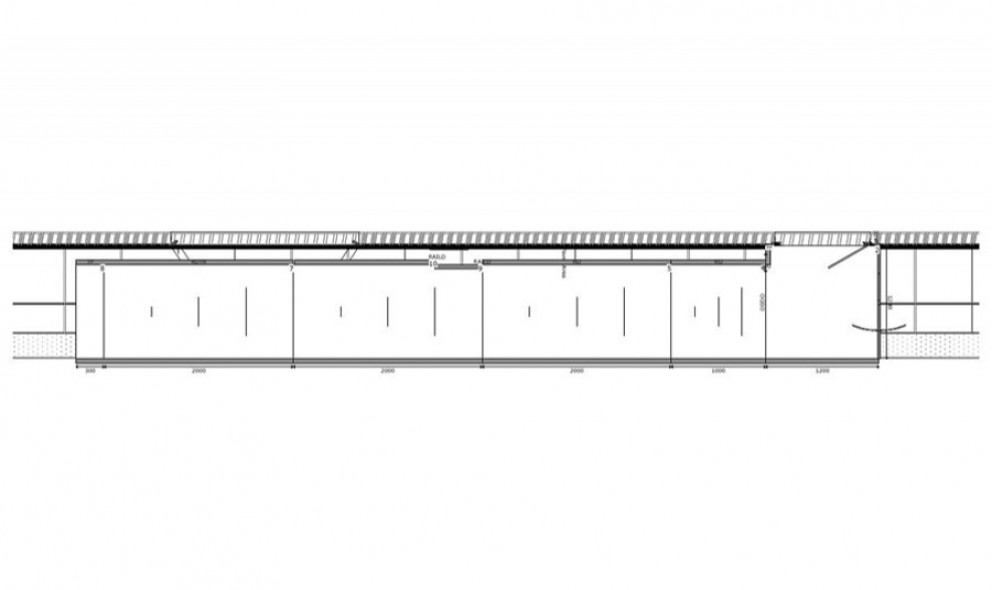

CAD and technical drawings were designed by our specialist CAD designer in-house, from measurements and photos taken by our site surveyor.

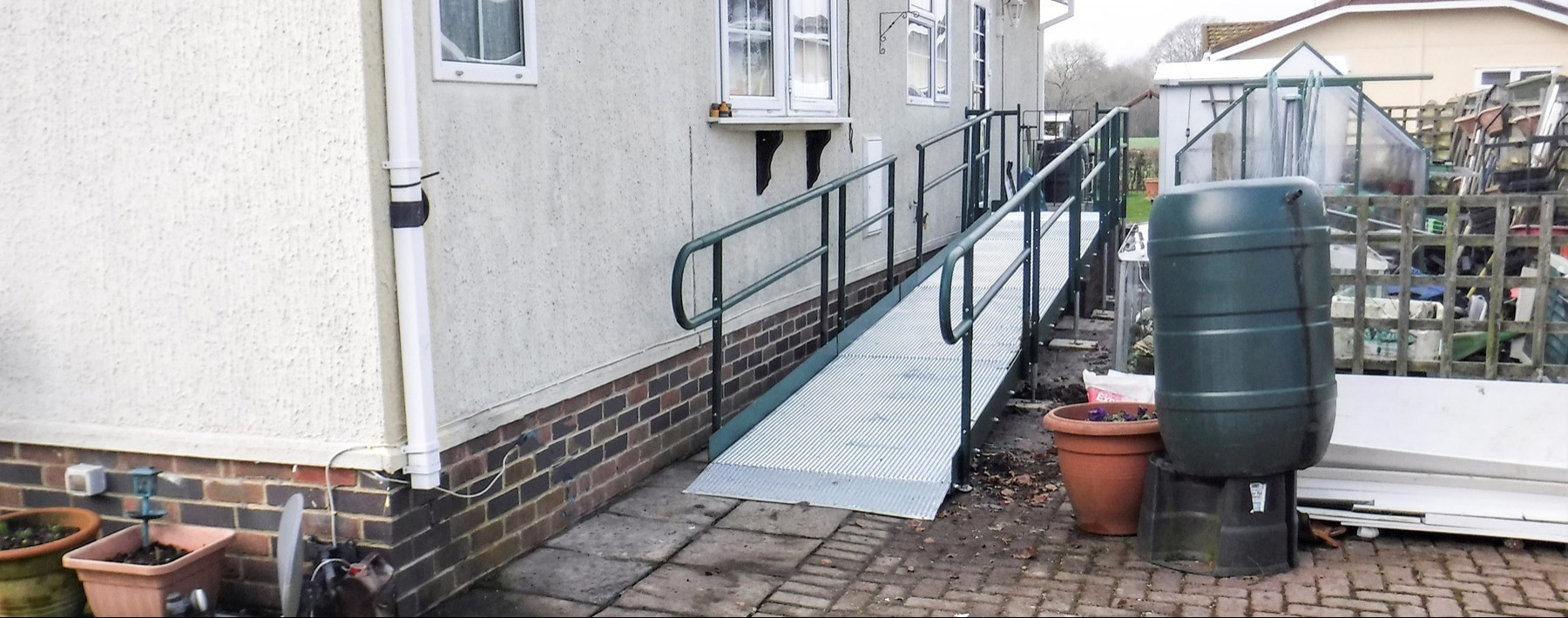

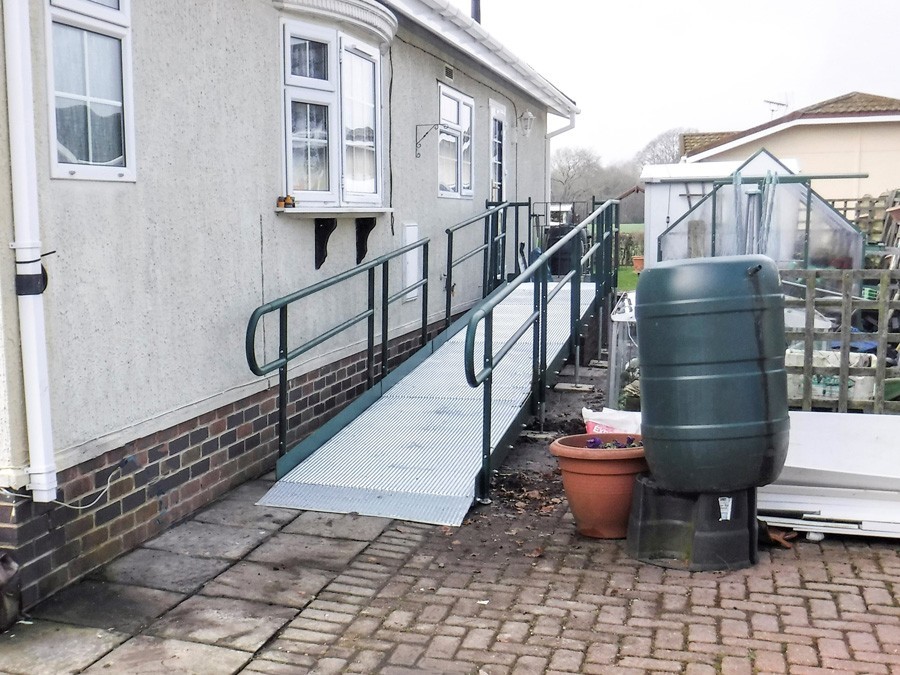

A 1200mm wide caravan ramp was installed within a few hours by our expert installers.

The ramp legs were adjusted to match the varying ground levels leading up to the front door.

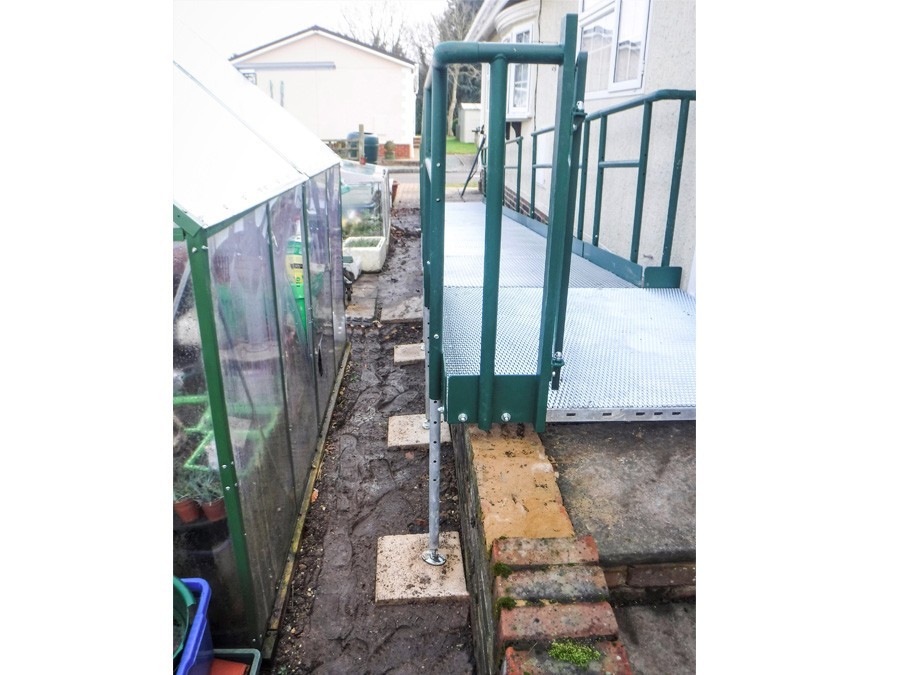

Concrete pads were added underneath the left-hand legs to ensure rigidity on the muddy terrain.

FEATURES INCLUDED:

• Trombone Ends - these are added to the ends of a Rapid Ramp to prevent clothes catching.
• Telescopic Legs - these can be adjusted to accommodate different threshold heights.
• Mesh Platform - the self-draining mesh allows water to pass through rather than collect on the surface.
• Standard Handrail - this handrail system is designed to be grasped by the hand, to provide stability or support.

EXTRA FEATURES INCLUDED:

• Gate Unit – this product provides access for abled bodied users.

Like caravans & mobile homes, our modular ramps & steps are prefabricated systems, carrying benefits including:

• A fast construction time - A caravan access ramp will typically completed within a 1 to 2-day turnaround time. Components are manufactured and stored in-house.
• Easy to remove – Once no required, ramps can be disassembled within a few hours.
• Design and build flexibility - Ramps can be re-designed and re-configured to suit different sized areas.
• Cost-effective – Our caravan ramps have a life span of over 25 years with no maintenance costs.
• Environmental benefits – Ramp components can be reused under our ramp recycling scheme.
